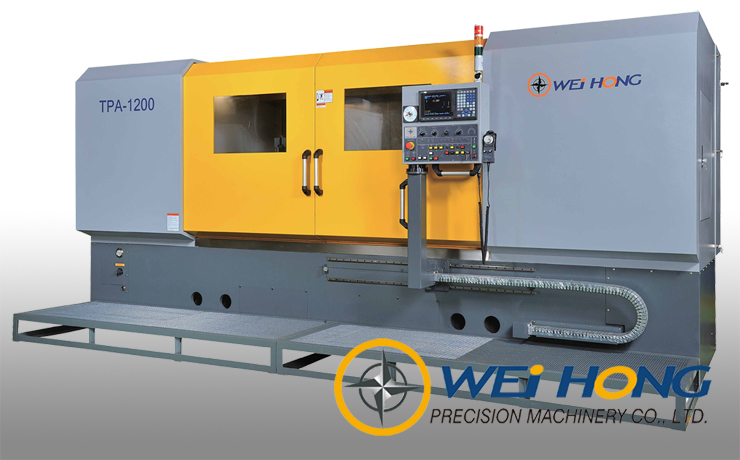

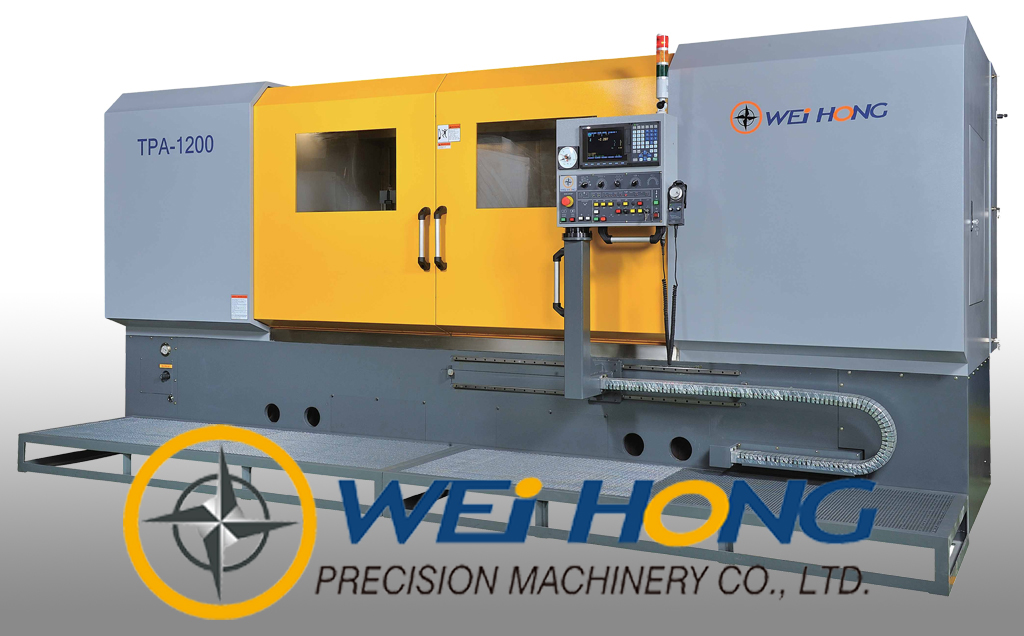

  Trepan Drilling Machine


















      Specifications
      Model
Drilling capacity of diameter

Drilling capacity of depth

Hydraulic 3-jaw chuck
Controller
Spindle motor
Spindle speed
Spindle taper
Number of spindles
Z-axis motor
Z-axis travel
TPA-1200
Core-stay: Ø80~300mm
Blind hole: Ø150mm
Unilateral drilling: 600mm
Bilateral drilling: 1200mm
Standard: 21" (Optional: 24")
MITSUBISHI M64ASM
AC servo 37.5 kw
10~850rpm
BT-50
1
AC servo 9.0 kw
2400mm


      * The selling right of this machine in North, South America and Europe is carried by Mollart Engineering Limited.

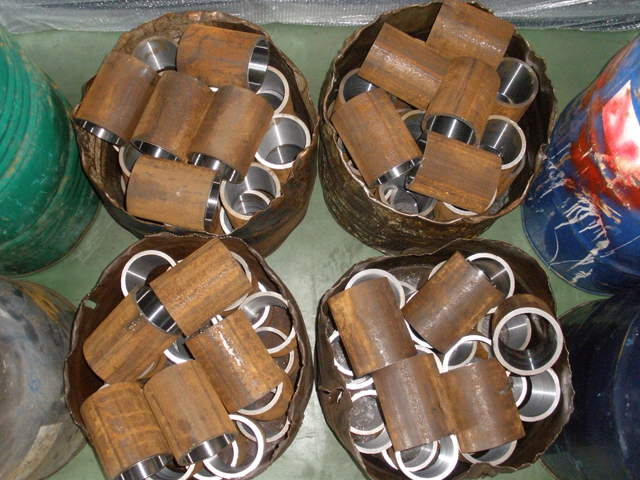

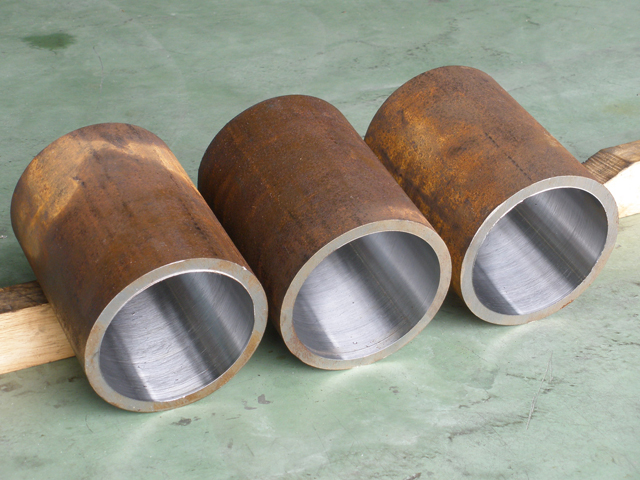

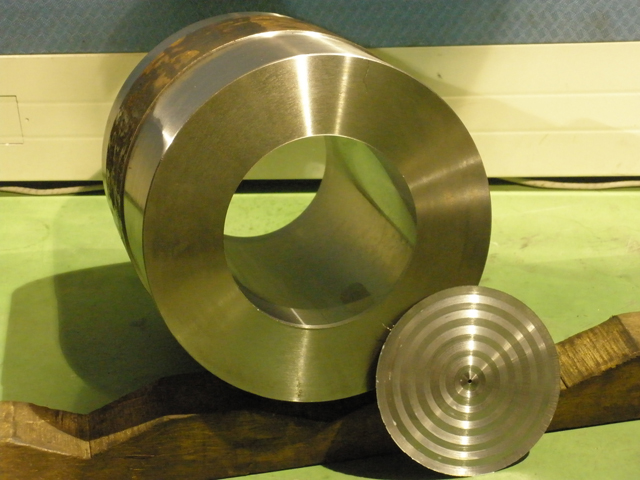

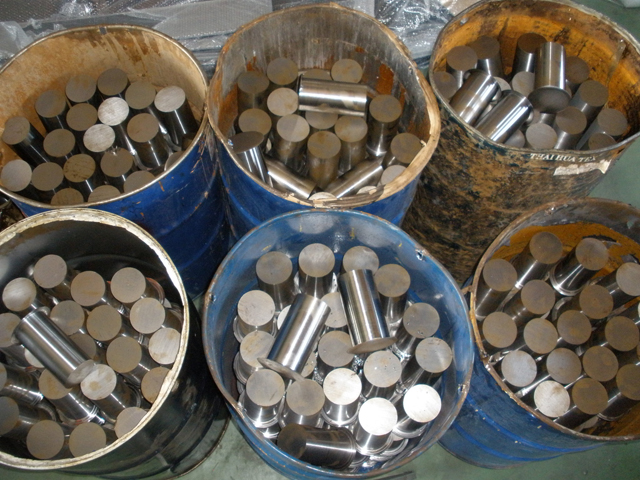

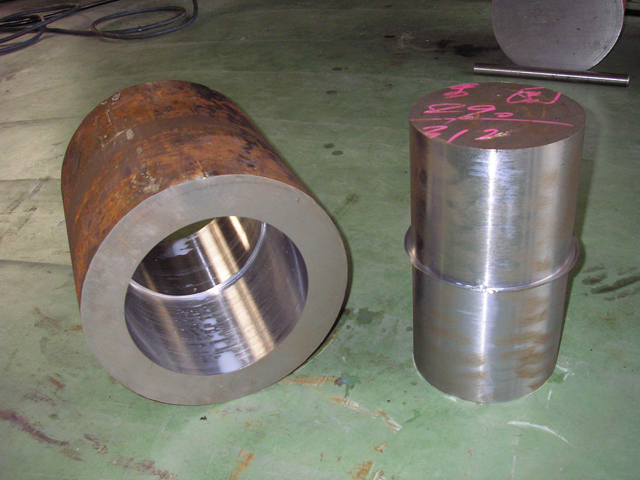

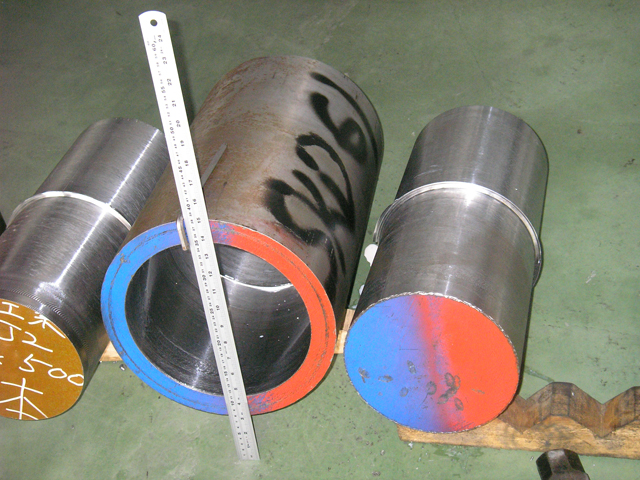

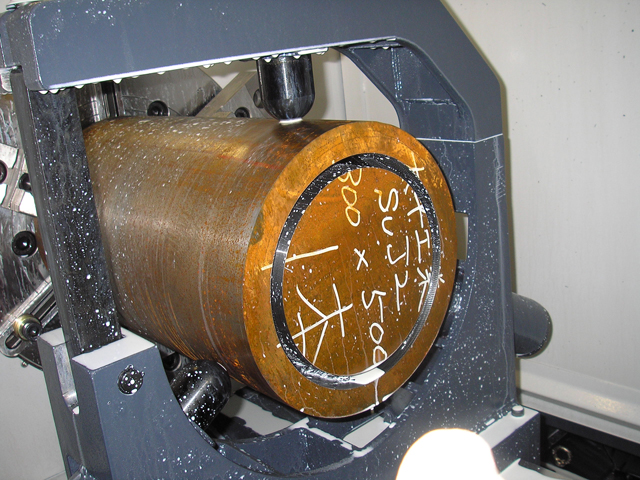

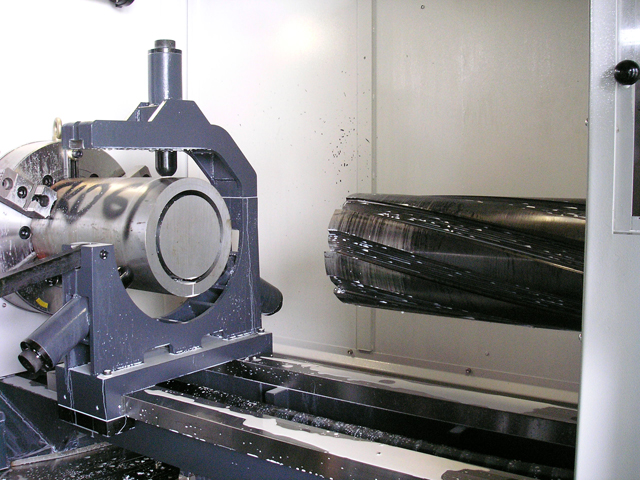

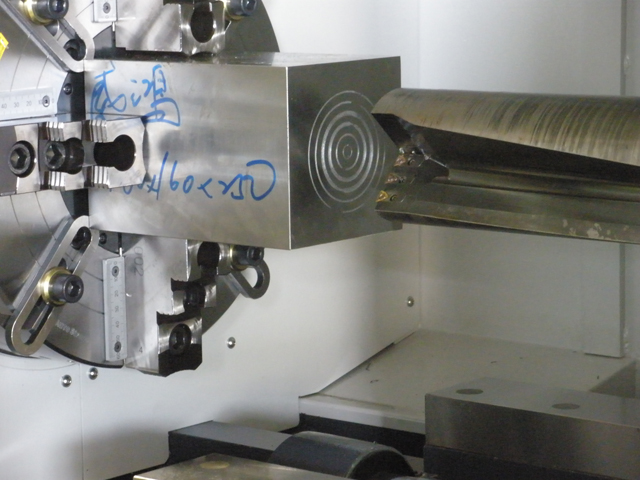

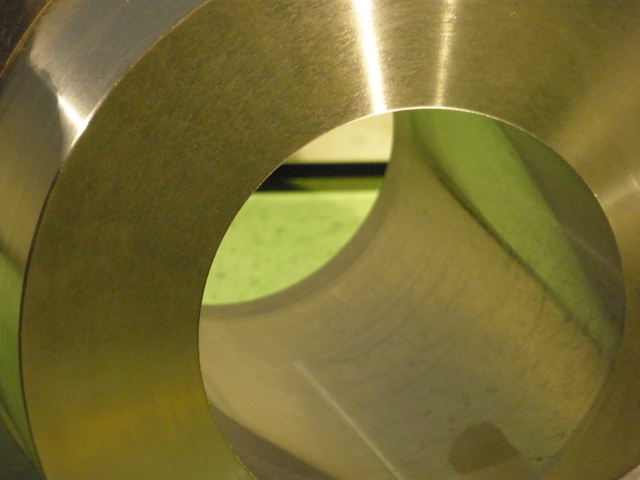

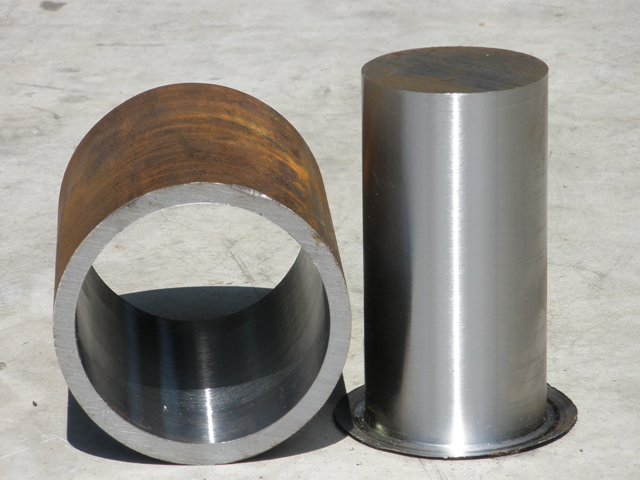

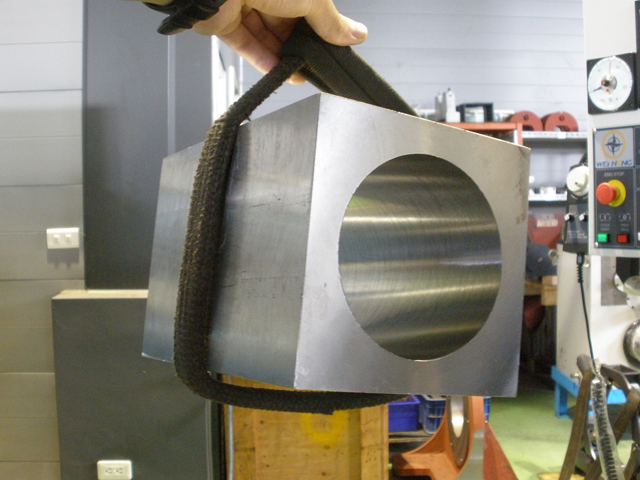

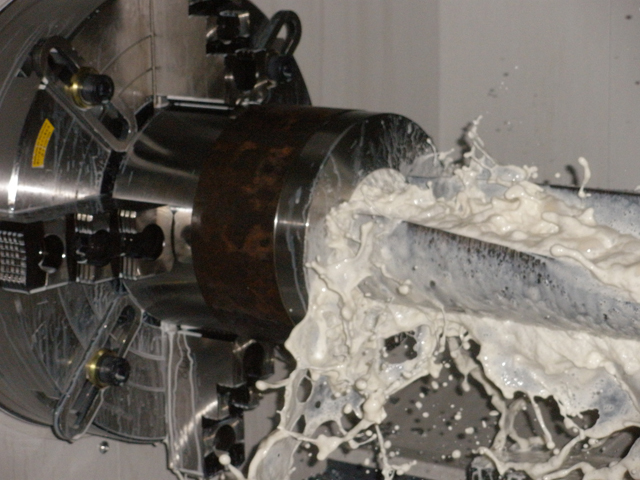

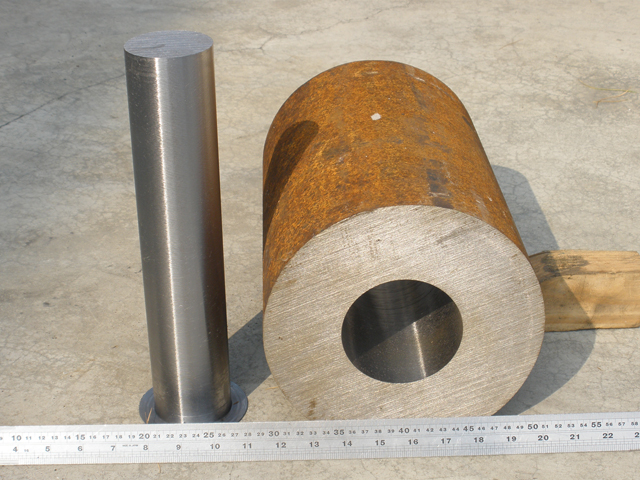

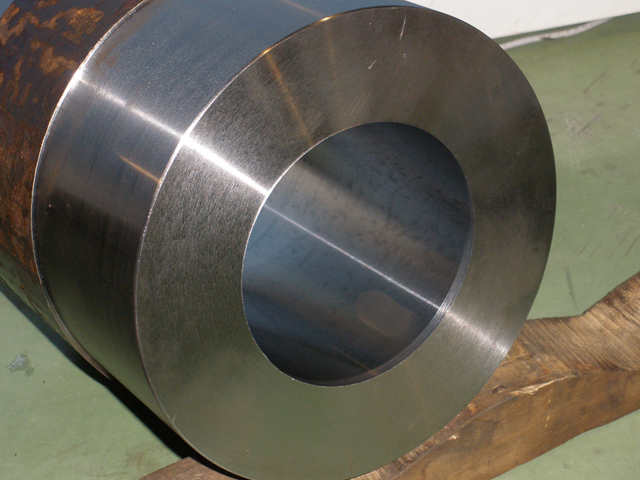

  Work Piece       Machining Video
